DELTA offers solutions for renovating and new constructions of facades. With different forms and dimensions of panels, vertical or horizontal cladding is possible. The manufacturing technique of DELTA also allows tailor-made shapes and dimensions for some panel forms. DELTA design profile sheets and complementary flashings introduce an international flair to the steel claddings. They offer diversity of shapes and economical advantage to both large and small surfaces. Our profiled sheets offer the possibility of minimalistic, tranquil and clear facade architecture. Colors, shapes and different materials as well as vertical, horizontal and diagonal installation possibilities provide the designer with a variety of options. In addition to facades, some of our profiled sheets are also used as roofing and load-bearing roof materials. Our conventional profiled sheets on the other hand offer new possibilities to the designer for use in a variety of different buildings and styles.

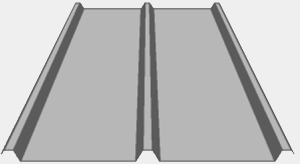

LCP 25/300 - WALL CLADDING and CEILING

	Material Data	Material Width (mm)	Thickness (mm)	Weight (kg/m2)
Aluminium	EN 3003,3005	300	0.80 – 1.20	2.90 – 4.35
		400	0.80 – 1.20	2.72 - 4.08
Steel	DIN 17162	300	0.80 – 1.00	8.75 - 10.95
		400	0.80 – 1.00	8.20 - 10.25
Titanium Zinc	EN 50 1201	300	0.80 – 1.20	7.68 - 11.52
		400	0.80 – 1.20	7.20 – 10.80

LCP 25/400- WALL CLADDING and CEILING

	Material Data	Material Width (mm)	Thickness (mm)	Weight (kg/m2)
Aluminium	EN 3003,3005	300	0.80 – 1.20	2.90 – 4.35
		400	0.80 – 1.20	2.72 - 4.08
Steel	DIN 17162	300	0.70 – 1.00	7.70 - 11.00
		400	0.70 – 1.00	7.22 - 10.31
Titanium Zinc	EN 50 1201	300	0.70 – 1.00	6.72 - 9.60
		400	0.70 – 1.00	6.30 – 9.00

IP 15/285- WALL CLADDING and CEILING

	Material Data	Material Width (mm)	Thickness (mm)	Weight (kg/m2)
Aluminium	EN 3003,3005	285	0.50 – 0.70	1.59 – 2.22
Steel	DIN 17162	285	0.50 – 0.70	4.82 - 6.75
Titanium Zinc	EN 50 1201	285	0.50 – 0.70	4.20 - 5.89

S 18/818 - WALL CLADDING

	Material Data	Material Width (mm)	Thickness (mm)	Weight (kg/m2)
Aluminium	EN 3003,3005	1000	0.50 – 1.20	1.66 – 3.32
Steel	DIN 17162	1000	0.50 – 1.00	6.05 - 12.10

TR 27/1000 - WALL CLADDING

	Material Data	Material Width (mm)	Thickness (mm)	Weight (kg/m2)
Aluminium	EN 3003,3005	1000	0.50 – 1.20	2.58 – 3.70
Steel	DIN 17162	1000	0.50 – 1.00	4.95 - 9.90

TR 29/900 - WALL and ROOF CLADDING

	Material Data	Material Width (mm)	Thickness (mm)	Weight (kg/m2)
Aluminium	EN 3003,3005	990	0.50 – 1.20	1.65 – 3.96
Steel	DIN 17162	990	0.50 – 1.00	5.00 - 10.00

TR 38/900 - WALL and ROOF CLADDING

	Material Data	Material Width (mm)	Thickness (mm)	Weight (kg/m2)
Aluminium	EN 3003,3005	900	0.50 – 1.20	1.82 – 4.36
Steel	DIN 17162	900	0.50 – 1.00	5.50 - 11.00

TR 60/836 - ROOF CLADDING

	Material Data	Material Width (mm)	Thickness (mm)	Weight (kg/m2)
Aluminium	EN 3003,3005	836	0.50 – 1.20	1.95 – 4.68
Steel	DIN 17162	836	0.50 – 1.00	5.92 - 11.84

TR 80/840 - ROOF CLADDING

	Material Data	Material Width (mm)	Thickness (mm)	Weight (kg/m2)
Aluminium	EN 3003,3005	840	0.50 – 1.20	2.08 – 4.99
Steel	DIN 17162	840	0.50 – 0.70	6.12 - 8.56

TR 100/750 - ROOF CLADDING

	Material Data	Material Width (mm)	Thickness (mm)	Weight (kg/m2)
Aluminium	EN 3003,3005	750	1.00 – 1.50	4.35 – 6.55
Steel	DIN 17162	750	0.80 – 1.50	10.40 - 15.60
